Name: NTE276
Brand: NTE Electronics, Inc
SKU: NTE276
Price: 6.25 USD
Availability: InStock

REF: NTE276 NTE Electronics, Inc

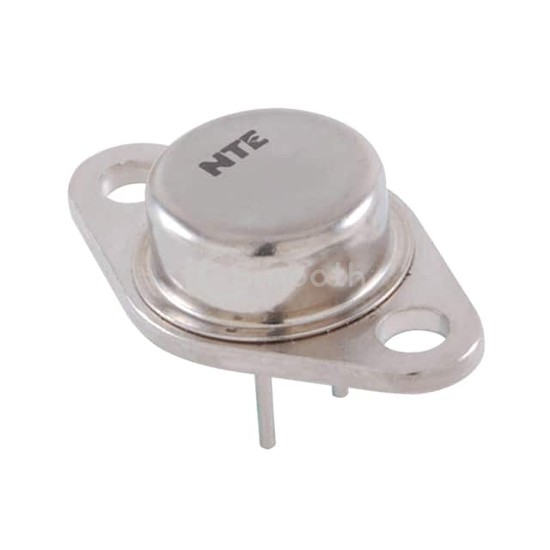

NTE276

SCR 1.25KV TO66

NTE276 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.25KV TO66. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 120°C (TJ), package / case TO-213AA, TO-66-2.

Datasheet Request a Quote

In Stock: 5,223

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.25 kV
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	120 mA
Voltage - On State (Vtm) (Max)	5.3 V
Current - On State (It (AV)) (Max)	5 A
Current - On State (It (RMS)) (Max)	-
Current - Hold (Ih) (Max)	300 mA

Current - Off State (Max)	500 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	33A, 80A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 120°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-213AA, TO-66-2
Supplier Device Package	TO-66
