NTE2684

In Stock: 627

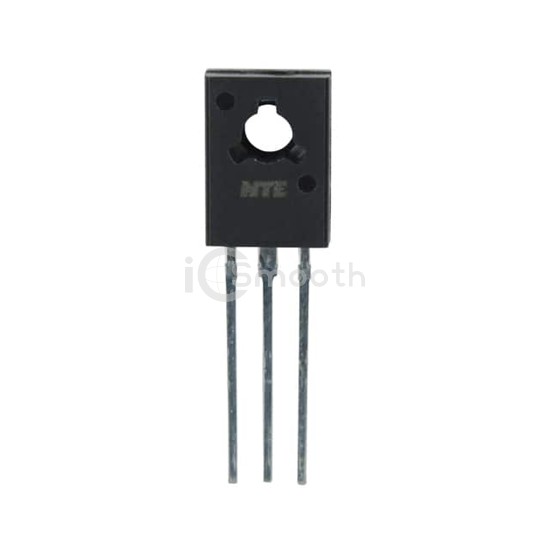

NTE2684 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - Single
REF: NTE2684 NTE Electronics, Inc
NTE2684

NTE Electronics, Inc

TRANS NPN 120V 5A TO126

NTE2684 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN 120V 5A TO126. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 627

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)120 V
Vce Saturation (Max) @ Ib, Ic1.2V @ 700mA, 7A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce45 @ 500mA, 10V
Power - Max15 W
Frequency - Transition100MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126
