Name: NTE2417
Brand: NTE Electronics, Inc
SKU: NTE2417
Price: 0.62 USD
Availability: InStock

REF: NTE2417 NTE Electronics, Inc

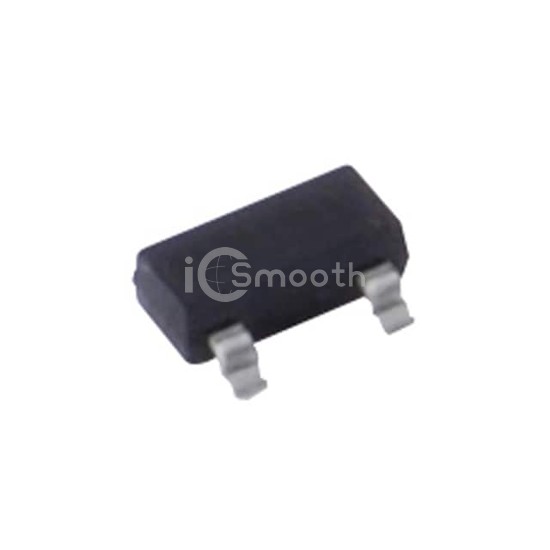

NTE2417

T-PNP SI WITH 22K RES

NTE2417 is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by NTE Electronics, Inc. T-PNP SI WITH 22K RES. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3, current - collector (ic) (max) 100 mA, power - max 200 mW.

Datasheet Request a Quote

In Stock: 1,645

Specifications

14 parameters

Product Status	Active
Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	22 kOhms
Resistor - Emitter Base (R2)	22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 10mA, 5V

Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	200 MHz
Power - Max	200 mW
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
