NTE2402

In Stock: 2,062

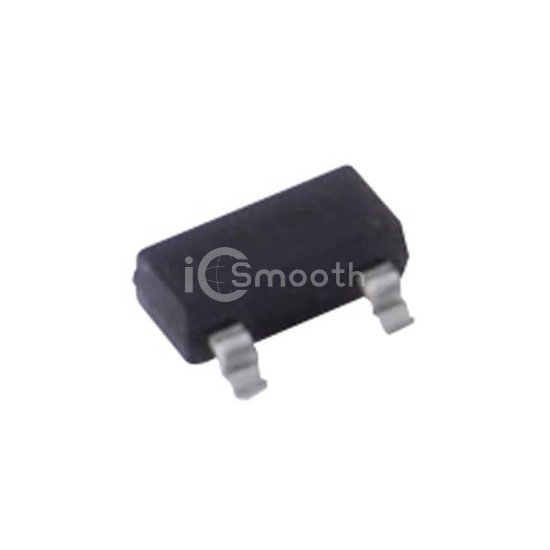

NTE2402 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - RF
REF: NTE2402 NTE Electronics, Inc
NTE2402

NTE Electronics, Inc

RF TRANS NPN 15V 5GHZ SOT23

NTE2402 is a Transistors - Bipolar (BJT) - RF manufactured by NTE Electronics, Inc. RF TRANS NPN 15V 5GHZ SOT23. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3, current - collector (ic) (max) 25mA.

Datasheet Request a Quote

In Stock: 2,062

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)15V
Frequency - Transition5GHz
Noise Figure (dB Typ @ f)2.4dB @ 500MHz
Gain18dB
Power - Max200mW
DC Current Gain (hFE) (Min) @ Ic, Vce25 @ 14mA, 10V
Current - Collector (Ic) (Max)25mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23
