NTE2309

In Stock: 404

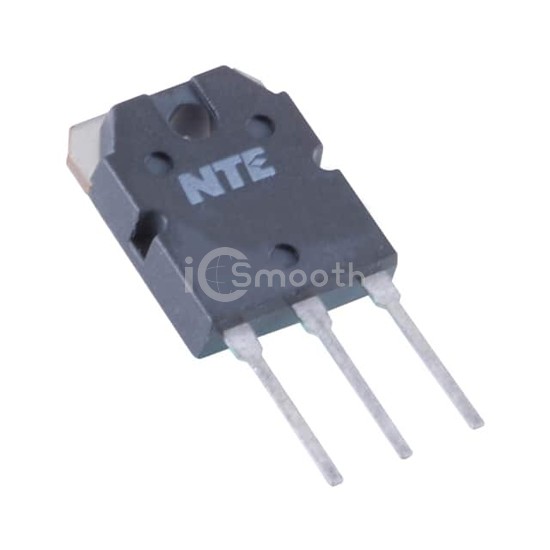

NTE2309 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - Single
REF: NTE2309 NTE Electronics, Inc
NTE2309

NTE Electronics, Inc

TRANS NPN 800V 12A TO3P

NTE2309 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN 800V 12A TO3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 12 A.

Datasheet Request a Quote

In Stock: 404

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)12 A
Voltage - Collector Emitter Breakdown (Max)800 V
Vce Saturation (Max) @ Ib, Ic2V @ 600mA, 3A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce10 @ 400mA, 5V
Power - Max2.5 W
Frequency - Transition15MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
