NTE2305

In Stock: 26

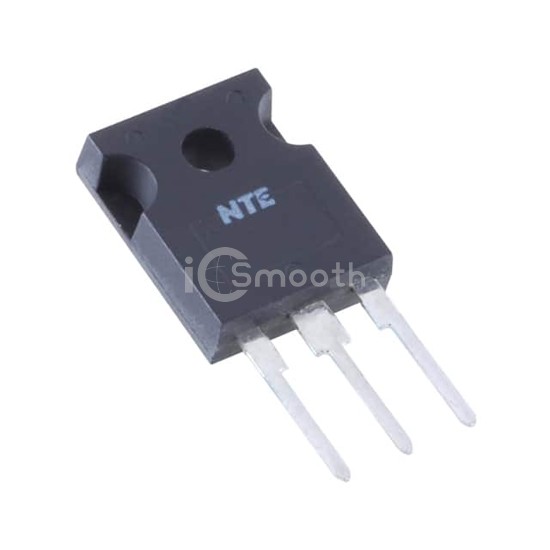

NTE2305 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - Single
REF: NTE2305 NTE Electronics, Inc
NTE2305

NTE Electronics, Inc

TRANS NPN 160V 16A TO3PN

NTE2305 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN 160V 16A TO3PN. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 16 A.

Datasheet Request a Quote

In Stock: 26

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)16 A
Voltage - Collector Emitter Breakdown (Max)160 V
Vce Saturation (Max) @ Ib, Ic3.5V @ 2A, 16A
Current - Collector Cutoff (Max)750µA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 8A, 2V
Power - Max125 W
Frequency - Transition1MHz
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3PN
