NTE2301

In Stock: 56

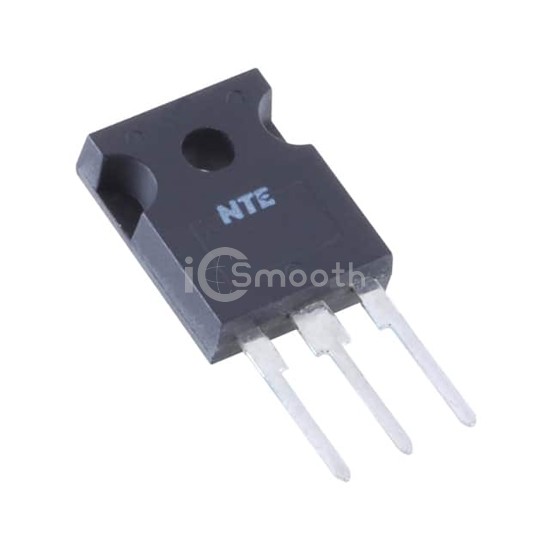

NTE2301 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - Single
REF: NTE2301 NTE Electronics, Inc
NTE2301

NTE Electronics, Inc

TRANS NPN 750V 5A TO218

NTE2301 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN 750V 5A TO218. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case TO-218-3, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 56

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)750 V
Vce Saturation (Max) @ Ib, Ic5V @ 1.8A, 4.5A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce-
Power - Max100 W
Frequency - Transition4MHz
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-218-3
Supplier Device PackageTO-218
