2N5496

In Stock: 112

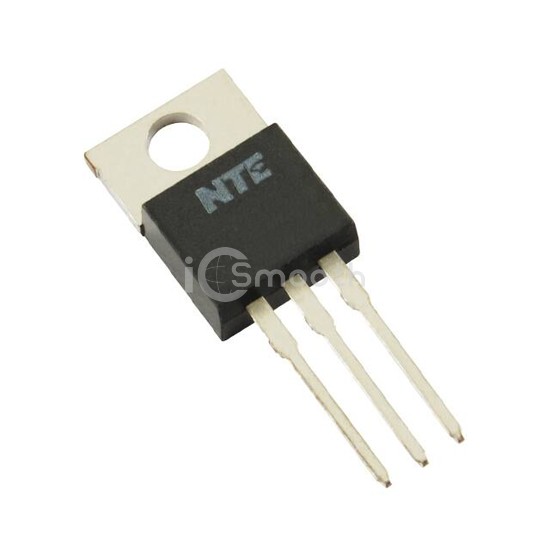

2N5496 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - Single
REF: 2N5496 NTE Electronics, Inc
2N5496

NTE Electronics, Inc

TRANS NPN 70V 7A TO220

2N5496 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN 70V 7A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 7 A.

Datasheet Request a Quote

In Stock: 112

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)7 A
Voltage - Collector Emitter Breakdown (Max)70 V
Vce Saturation (Max) @ Ib, Ic3.5V @ 3A, 7A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 2A, 4V
Power - Max40 W
Frequency - Transition4MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220
