R-SCHOTTKY 20V 3A

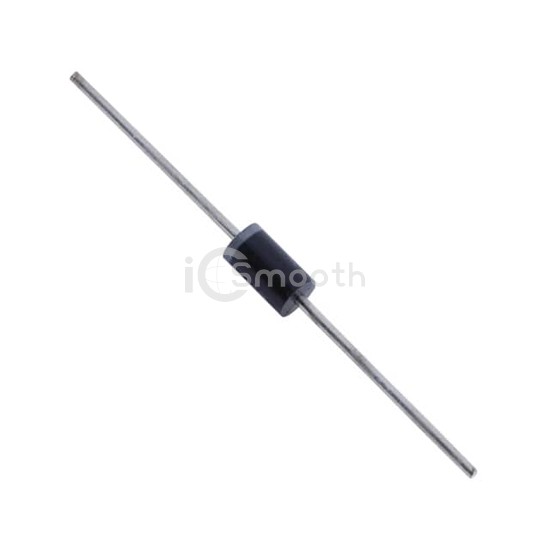

1N5820 is a Diodes - Rectifiers - Single manufactured by NTE Electronics, Inc. R-SCHOTTKY 20V 3A. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.
In Stock: 298
| Product Status | Active |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 475 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 20 V |
|---|---|
| Capacitance @ Vr, F | 190pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -65°C ~ 125°C |
