1N4747A

In Stock: 260

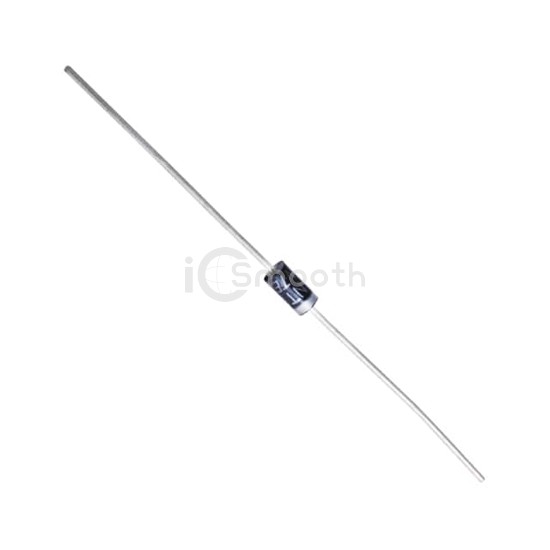

1N4747A - NTE Electronics, Inc - Diodes - Zener - Single
REF: 1N4747A NTE Electronics, Inc
1N4747A

NTE Electronics, Inc

DIODE ZENER 20V 1W AXIAL

1N4747A is a Diodes - Zener - Single manufactured by NTE Electronics, Inc. DIODE ZENER 20V 1W AXIAL. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 20°C, package / case Axial, power - max 1 W.

Datasheet Request a Quote

In Stock: 260

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)20 V
Tolerance±5%
Power - Max1 W
Impedance (Max) (Zzt)22 Ohms
Current - Reverse Leakage @ Vr5 µA @ 15.2 V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-65°C ~ 20°C
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
