NRF5340-QKAA-R

In Stock: 1,693

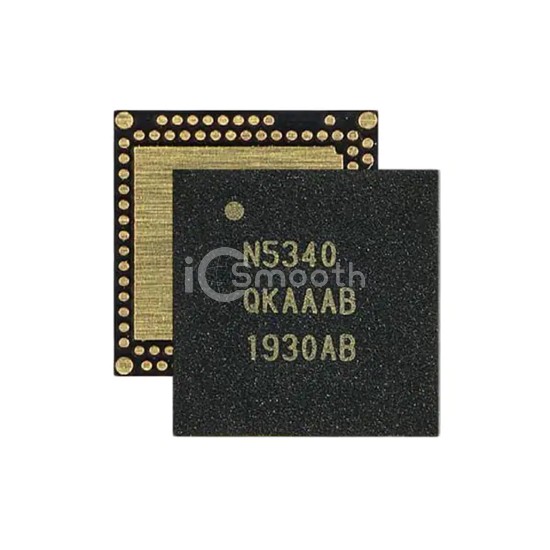

NRF5340-QKAA-R - Nordic Semiconductor ASA - RF Transceiver ICs
REF: NRF5340-QKAA-R Nordic Semiconductor ASA
NRF5340-QKAA-R

Nordic Semiconductor ASA

BLE 5.2 SOC

NRF5340-QKAA-R is a RF Transceiver ICs manufactured by Nordic Semiconductor ASA. BLE 5.2 SOC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 1.7V ~ 5.5V, package / case 94-VFQFN Dual Rows, Exposed Pad.

Datasheet Request a Quote

In Stock: 1,693

Tiered Pricing USD
1+ $7.6800 —
1,000+ $6.5400 -15% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4, Bluetooth
ProtocolBluetooth v5.1, Thread, Zigbee®
Modulation-
Frequency2.4GHz
Data Rate (Max)2Mbps
Power - Output3dBm
Sensitivity-97.5dBm
Memory Size1MB Flash, 256kB RAM
Serial InterfacesADC, I²S, PWM, SPI, UART, USB
GPIO48
Voltage - Supply1.7V ~ 5.5V
Current - Receiving2.6mA ~ 7mA
Current - Transmitting3.2mA
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case94-VFQFN Dual Rows, Exposed Pad
Supplier Device Package94-aQFN (7x7)
