NRF52820-QDAA-R

In Stock: 1,503

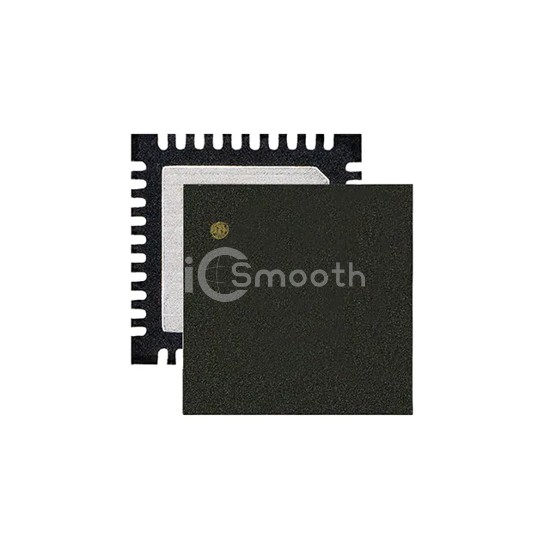

NRF52820-QDAA-R - Nordic Semiconductor ASA - RF Transceiver ICs
REF: NRF52820-QDAA-R Nordic Semiconductor ASA
NRF52820-QDAA-R

Nordic Semiconductor ASA

BLE/ANT/ 802.15.4/THREAD/ZIGBEE

NRF52820-QDAA-R is a RF Transceiver ICs manufactured by Nordic Semiconductor ASA. BLE/ANT/ 802.15.4/THREAD/ZIGBEE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 1.7V ~ 5.5V, package / case 40-QFN.

Datasheet Request a Quote

In Stock: 1,503

Tiered Pricing USD
1+ $2.8200 —
1,000+ $2.4100 -15% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4, Bluetooth
ProtocolBluetooth v5.3, Thread, Zigbee®
Modulation-
Frequency2.4GHz
Data Rate (Max)2Mbps
Power - Output8dBm
Sensitivity-95dBm
Memory Size256kB Flash, 32kB RAM
Serial InterfacesGPIO, I²S, SPI, UART, USB
GPIO18
Voltage - Supply1.7V ~ 5.5V
Current - Receiving4.7mA
Current - Transmitting4.9mA
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case40-QFN
Supplier Device Package40-QFN (5x5)
