RP604Z301A-E2-F

In Stock: 9,164

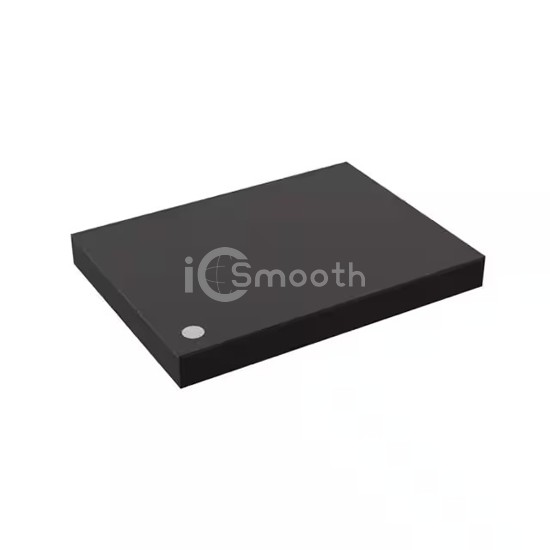

RP604Z301A-E2-F - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: RP604Z301A-E2-F Nisshinbo Micro Devices Inc.
RP604Z301A-E2-F

Nisshinbo Micro Devices Inc.

ULTRA-LOW QUIESCENT CURRENT (IQ

RP604Z301A-E2-F is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. ULTRA-LOW QUIESCENT CURRENT (IQ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-XFBGA, WLCSP, current - output 300mA.

Datasheet Request a Quote

In Stock: 9,164

Specifications

17 parameters
Product StatusActive
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyBuck-Boost
Output TypeFixed
Number of Outputs1
Voltage - Input (Min)1.8V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)3V
Voltage - Output (Max)-
Current - Output300mA
Frequency - Switching-
Synchronous RectifierNo
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-XFBGA, WLCSP
Supplier Device PackageWLCSP-20-P2
