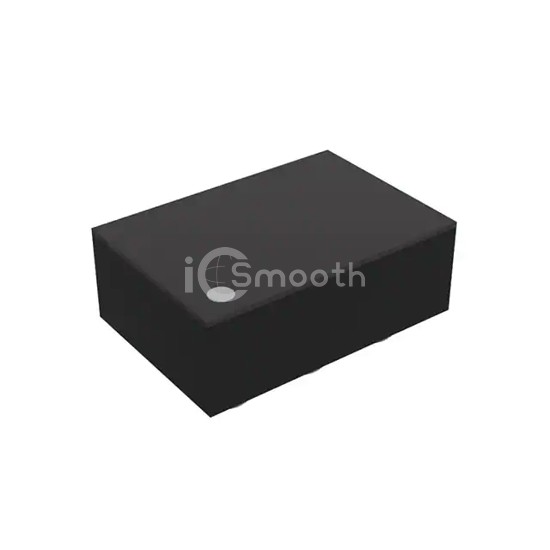

Name: RP509Z072B-E2-F
Brand: Nisshinbo Micro Devices Inc.
SKU: RP509Z072B-E2-F
Price: 0.32 USD
Availability: InStock

REF: RP509Z072B-E2-F Nisshinbo Micro Devices Inc.

RP509Z072B-E2-F

Nisshinbo Micro Devices Inc.

0.5A/1A 6MHZ PWM/VFM STEP-DOWN D

RP509Z072B-E2-F is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. 0.5A/1A 6MHZ PWM/VFM STEP-DOWN D. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-WFBGA, WLCSP, current - output 500mA.

Datasheet Request a Quote

In Stock: 100

Tiered Pricing USD

5,000+ $0.3206 —

10,000+ $0.3135 -2%

15,000+ $0.3099 -3%

25,000+ $0.3060 -5% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.7V

Voltage - Output (Max)	-
Current - Output	500mA
Frequency - Switching	6MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-WFBGA, WLCSP
Supplier Device Package	WLCSP-6-P6
