Name: RP506L001N-TR-Y
Brand: Nisshinbo Micro Devices Inc.
SKU: RP506L001N-TR-Y
Price: 1.33 USD
Availability: InStock

REF: RP506L001N-TR-Y Nisshinbo Micro Devices Inc.

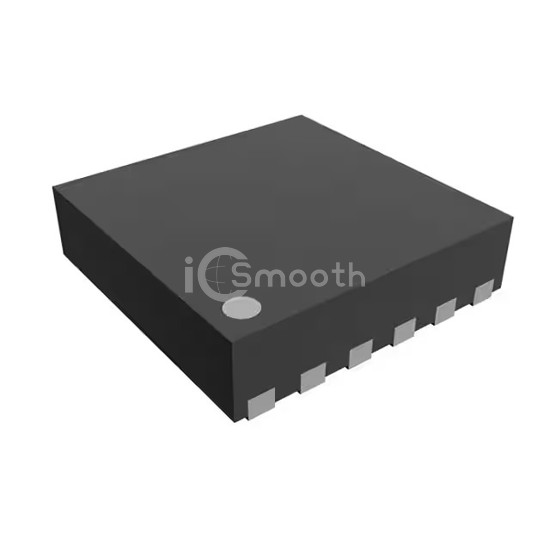

RP506L001N-TR-Y

Nisshinbo Micro Devices Inc.

2 A PWM/VFM STEP-DOWN DC/DC CONV

RP506L001N-TR-Y is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. 2 A PWM/VFM STEP-DOWN DC/DC CONV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 12-WFDFN Exposed Pad, current - output 2A.

Datasheet Request a Quote

In Stock: 4,618

Tiered Pricing USD

3,000+ $1.3289 —

6,000+ $1.3031 -2% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	4V
Current - Output	2A
Frequency - Switching	2.3MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	DFN3030-12
