Name: RP505K091A-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: RP505K091A-TR
Price: 1.55 USD
Availability: InStock

REF: RP505K091A-TR Nisshinbo Micro Devices Inc.

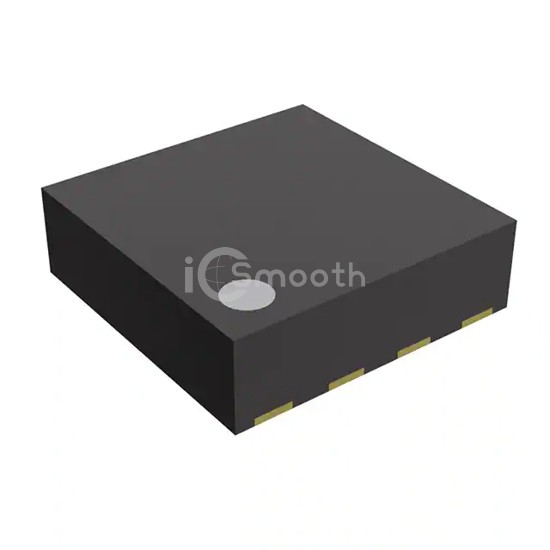

RP505K091A-TR

Nisshinbo Micro Devices Inc.

1A PWM/VFM STEP-DOWN DCDC CONVER

RP505K091A-TR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. 1A PWM/VFM STEP-DOWN DCDC CONVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 100

Tiered Pricing USD

1+ $1.5500 —

10+ $1.1300 -27%

25+ $1.0260 -34%

100+ $0.9116 -41%

250+ $0.8570 -45%

500+ $0.8241 -47%

1,000+ $0.7970 -49%

2,500+ $0.7700 -50% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.9V

Voltage - Output (Max)	-
Current - Output	1A
Frequency - Switching	2.25MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFDFN Exposed Pad
Supplier Device Package	DFN(PLP)2020-8
