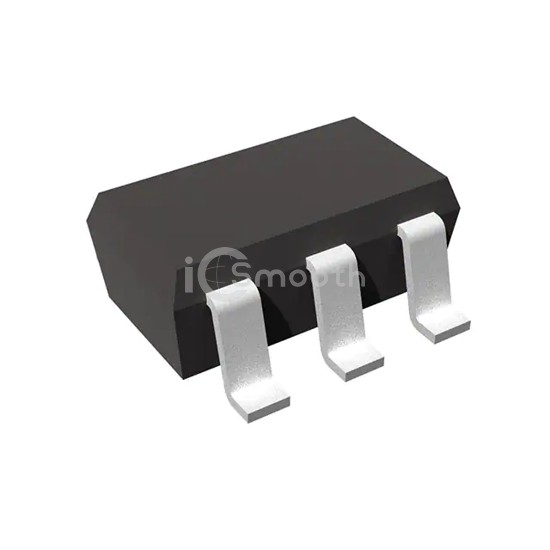

Name: RP504K101A-E2
Brand: Nisshinbo Micro Devices Inc.
SKU: RP504K101A-E2
Price: 1.52 USD
Availability: InStock

REF: RP504K101A-E2 Nisshinbo Micro Devices Inc.

RP504K101A-E2

Nisshinbo Micro Devices Inc.

600MA PWM/VFM STEP-DOWN DCDC CON

RP504K101A-E2 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. 600MA PWM/VFM STEP-DOWN DCDC CON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, current - output 600mA.

Datasheet Request a Quote

In Stock: 100

Tiered Pricing USD

1+ $1.5200 —

10+ $1.1110 -27%

25+ $1.0088 -34%

100+ $0.8959 -41%

250+ $0.8421 -45%

500+ $0.8097 -47%

1,000+ $0.7830 -48%

2,500+ $0.7560 -50% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1V

Voltage - Output (Max)	-
Current - Output	600mA
Frequency - Switching	2.25MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
