RP402K002A-TR

In Stock: 1,493

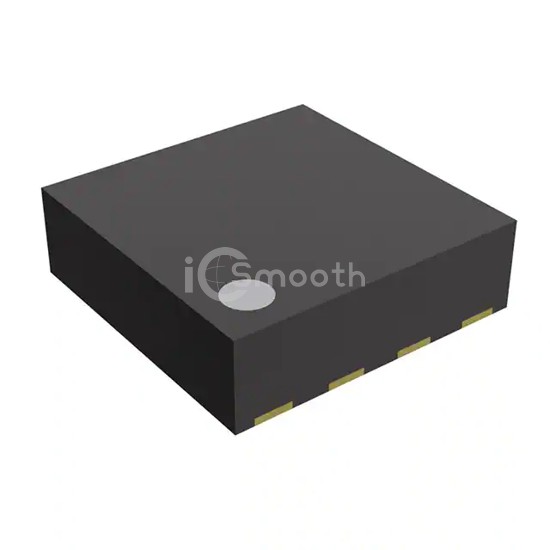

RP402K002A-TR - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: RP402K002A-TR Nisshinbo Micro Devices Inc.
RP402K002A-TR

Nisshinbo Micro Devices Inc.

PWM/VFM STEP-UP DCDC CONVERTER W

RP402K002A-TR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. PWM/VFM STEP-UP DCDC CONVERTER W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFDFN Exposed Pad, current - output 800mA.

Datasheet Request a Quote

In Stock: 1,493

Tiered Pricing USD
5,000+ $0.7110 —
10,000+ $0.6975 -2% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Up
Output ConfigurationPositive
TopologyBoost
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)0.6V
Voltage - Input (Max)4.6V
Voltage - Output (Min/Fixed)1.8V
Voltage - Output (Max)5.5V
Current - Output800mA
Frequency - Switching1.2MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-UFDFN Exposed Pad
Supplier Device PackageDFN(PLP)2020-8
