Name: RP154L053A-E2
Brand: Nisshinbo Micro Devices Inc.
SKU: RP154L053A-E2
Price: 0.52 USD
Availability: InStock

REF: RP154L053A-E2 Nisshinbo Micro Devices Inc.

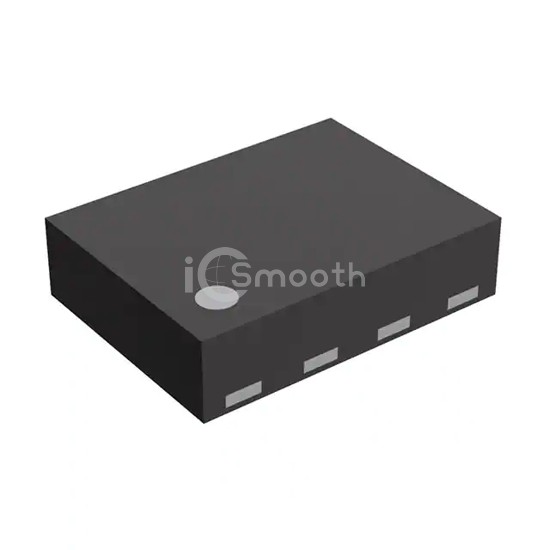

RP154L053A-E2

Nisshinbo Micro Devices Inc.

IC REG LIN 2.85V/3.1V 300MA 8DFN

RP154L053A-E2 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LIN 2.85V/3.1V 300MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-XFDFN Exposed Pad, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 2,723

Tiered Pricing USD

5,000+ $0.5233 —

10,000+ $0.5127 -2%

15,000+ $0.5074 -3% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.25V
Voltage - Output (Min/Fixed)	2.85V, 3.1V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.3V @ 300mA, 0.29V @ 300mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	75 µA
Current - Supply (Max)	-
PSRR	75dB (1kHz)
Control Features	Enable
Protection Features	Over Current
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-XFDFN Exposed Pad
Supplier Device Package	DFN1216-8
