Name: RP117K501D-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: RP117K501D-TR
Price: 1.01 USD
Availability: InStock

REF: RP117K501D-TR Nisshinbo Micro Devices Inc.

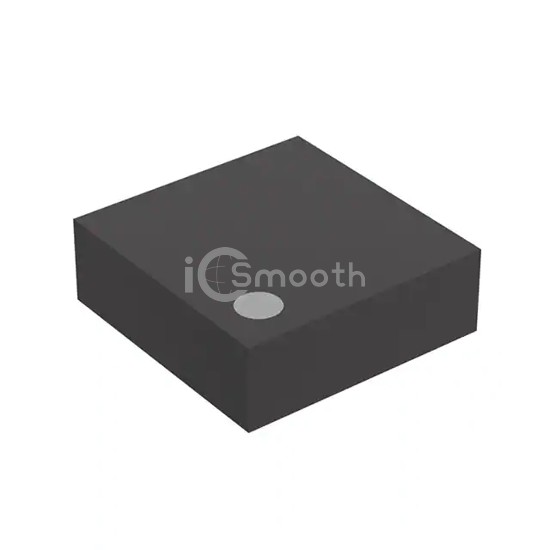

RP117K501D-TR

Nisshinbo Micro Devices Inc.

IC REG LIN -5V 100MA DFN1212-6

RP117K501D-TR is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LIN -5V 100MA DFN1212-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-XFDFN, current - output 100mA.

Datasheet Request a Quote

In Stock: 14,054

Tiered Pricing USD

1+ $1.0100 —

10+ $0.7280 -28%

25+ $0.6568 -35%

100+ $0.5787 -43%

250+ $0.5415 -46%

500+ $0.5191 -49%

1,000+ $0.5006 -50%

2,500+ $0.4811 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	-2.5V
Voltage - Output (Min/Fixed)	-5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.21V @ 100mA
Current - Output	100mA

Current - Quiescent (Iq)	150 µA
Current - Supply (Max)	-
PSRR	80dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFDFN
Supplier Device Package	DFN(PLP)1212-6
