RP114N181D-TR-FE

In Stock: 2,206

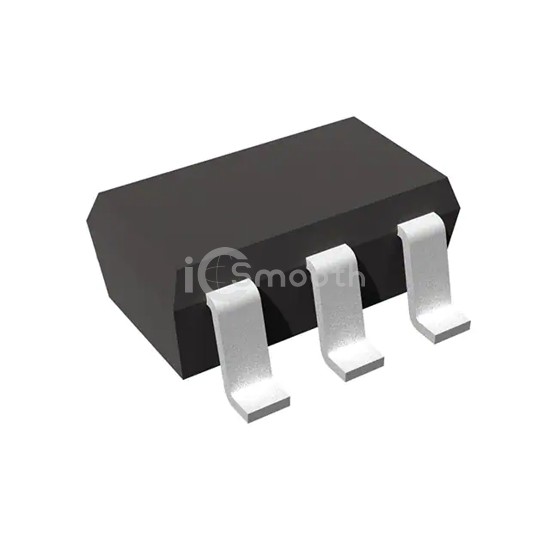

RP114N181D-TR-FE - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: RP114N181D-TR-FE Nisshinbo Micro Devices Inc.
RP114N181D-TR-FE

Nisshinbo Micro Devices Inc.

IC REG LINEAR 1.8V 300MA SOT23-5

RP114N181D-TR-FE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 1.8V 300MA SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, current - output 300mA.

Datasheet Request a Quote

In Stock: 2,206

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)1.8V
Voltage - Output (Max)-
Voltage Dropout (Max)0.39V @ 300mA, 0.39V @ 300mA
Current - Output300mA
Current - Quiescent (Iq)75 µA
Current - Supply (Max)-
PSRR75dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
