Name: RP109L221B-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: RP109L221B-TR
Price: 0.23 USD
Availability: InStock

REF: RP109L221B-TR Nisshinbo Micro Devices Inc.

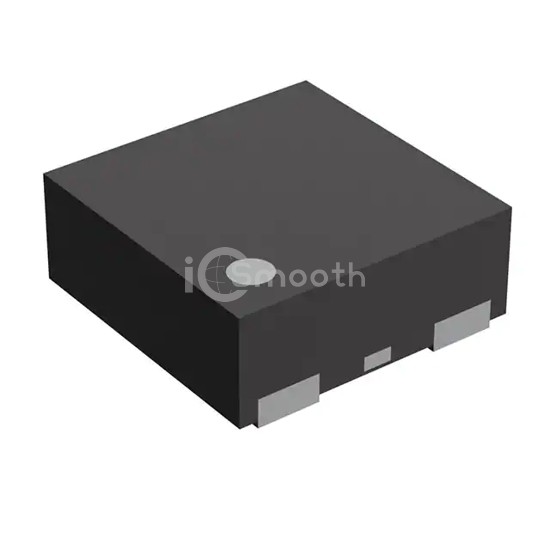

RP109L221B-TR

Nisshinbo Micro Devices Inc.

IC REG LIN 2.2V 150MA DFN1010-4

RP109L221B-TR is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LIN 2.2V 150MA DFN1010-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XDFN Exposed Pad, current - output 150mA.

Datasheet Request a Quote

In Stock: 1,099

Tiered Pricing USD

10,000+ $0.2332 —

20,000+ $0.2287 -2%

30,000+ $0.2264 -3% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.25V
Voltage - Output (Min/Fixed)	2.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.4V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	70 µA
Current - Supply (Max)	-
PSRR	75dB (1kHz)
Control Features	Enable
Protection Features	Over Current
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	DFN1010-4
