RP109K221D-TR

In Stock: 6,836

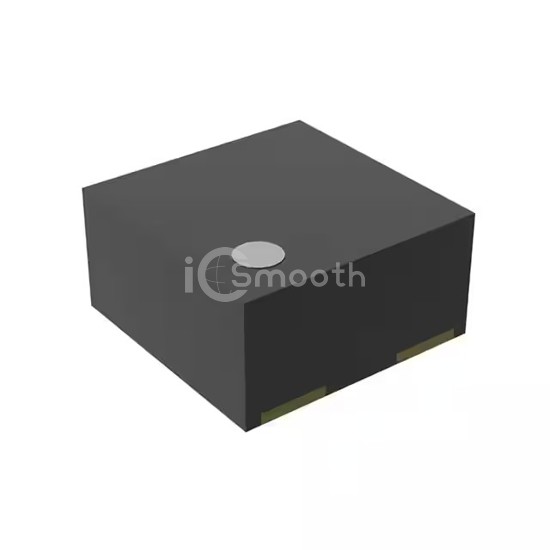

RP109K221D-TR - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: RP109K221D-TR Nisshinbo Micro Devices Inc.
RP109K221D-TR

Nisshinbo Micro Devices Inc.

IC REG LIN 2.2V 150MA DFN0808-4

RP109K221D-TR is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LIN 2.2V 150MA DFN0808-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFDFN Exposed Pad, current - output 150mA.

Datasheet Request a Quote

In Stock: 6,836

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)2.2V
Voltage - Output (Max)-
Voltage Dropout (Max)0.4V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)70 µA
Current - Supply (Max)-
PSRR75dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case4-XFDFN Exposed Pad
Supplier Device PackageDFN(PLP)0808-4
