R5326K006B-TR

In Stock: 3,086

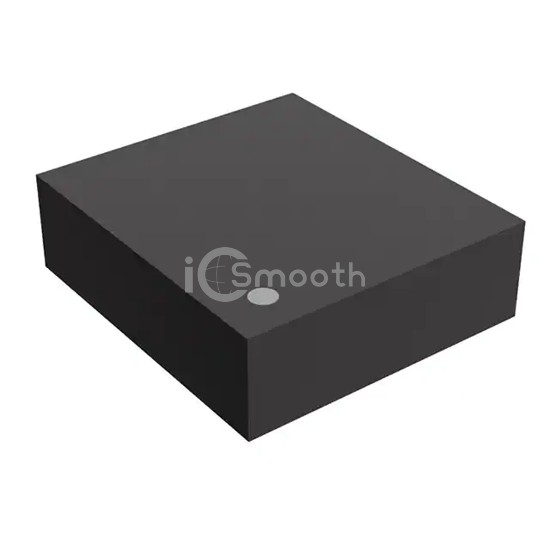

R5326K006B-TR - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: R5326K006B-TR Nisshinbo Micro Devices Inc.
R5326K006B-TR

Nisshinbo Micro Devices Inc.

IC REG LINEAR POS ADJ 150MA 6DFN

R5326K006B-TR is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR POS ADJ 150MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-UFDFN Exposed Pad, current - output 150mA, 150mA.

Datasheet Request a Quote

In Stock: 3,086

Tiered Pricing USD
5,000+ $0.4694 —
10,000+ $0.4597 -2%
15,000+ $0.4549 -3% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)4.2V
Voltage Dropout (Max)0.67V @ 150mA, 0.67V @ 150mA
Current - Output150mA, 150mA
Current - Quiescent (Iq)105 µA
Current - Supply (Max)-
PSRR70dB ~ 60dB (1kHz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case6-UFDFN Exposed Pad
Supplier Device PackageDFN(PLP)1820-6
