Name: R1560S501B-E2-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1560S501B-E2-FE
Price: 1.79 USD
Availability: InStock

REF: R1560S501B-E2-FE Nisshinbo Micro Devices Inc.

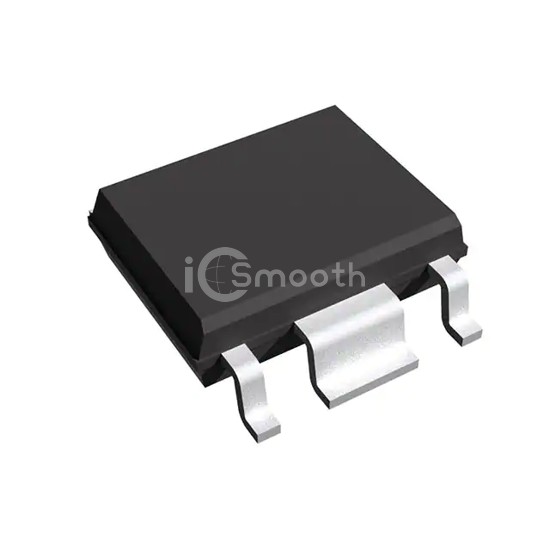

R1560S501B-E2-FE

Nisshinbo Micro Devices Inc.

IC REG LINEAR 5V 100MA 6HSOP

R1560S501B-E2-FE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 5V 100MA 6HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins, current - output 100mA.

Datasheet Request a Quote

In Stock: 1,997

Tiered Pricing USD

1+ $1.7900 —

10+ $1.3180 -26%

25+ $1.1988 -33%

100+ $1.0680 -40%

250+ $1.0055 -44%

500+ $0.9679 -46% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	60V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	3V @ 100mA
Current - Output	100mA

Current - Quiescent (Iq)	8 µA
Current - Supply (Max)	-
PSRR	-
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package	6-HSOP-J
