R1560J501B-T1-KE

In Stock: 8,063

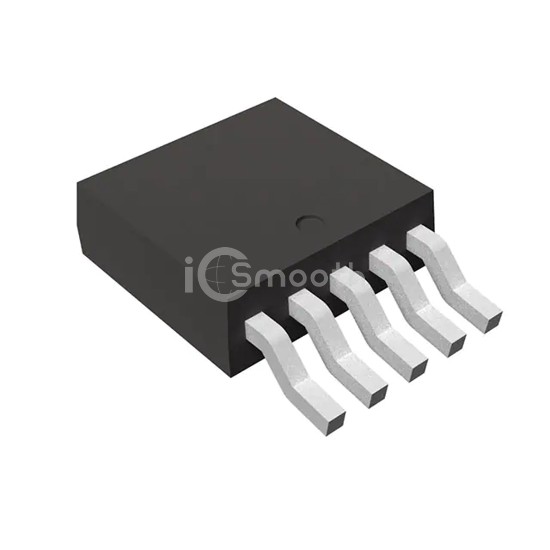

R1560J501B-T1-KE - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: R1560J501B-T1-KE Nisshinbo Micro Devices Inc.
R1560J501B-T1-KE

Nisshinbo Micro Devices Inc.

IC REG LIN 5V 100MA TO252-5-P2

R1560J501B-T1-KE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LIN 5V 100MA TO252-5-P2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case TO-252-6, DPak (5 Leads + Tab), current - output 100mA.

Datasheet Request a Quote

In Stock: 8,063

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)3V @ 100mA
Current - Output100mA
Current - Quiescent (Iq)8 µA
Current - Supply (Max)-
PSRR-
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / CaseTO-252-6, DPak (5 Leads + Tab)
Supplier Device PackageTO-252-5-P2
