Name: R1540S001B-E2-KE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1540S001B-E2-KE
Price: 2.56 USD
Availability: InStock

REF: R1540S001B-E2-KE Nisshinbo Micro Devices Inc.

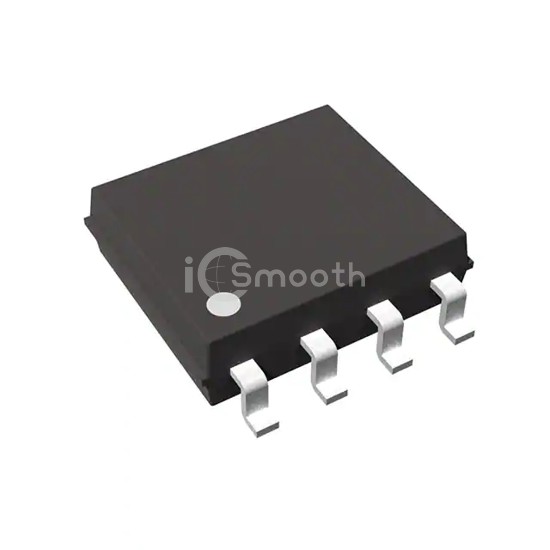

R1540S001B-E2-KE

Nisshinbo Micro Devices Inc.

IC REG LINEAR POS ADJ 70MA 8HSOP

R1540S001B-E2-KE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR POS ADJ 70MA 8HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-SOIC (0.173", 4.40mm Width) Exposed Pad, current - output 70mA.

Datasheet Request a Quote

In Stock: 950

Tiered Pricing USD

1+ $2.5600 —

10+ $1.9060 -26%

25+ $1.7420 -32%

100+ $1.5619 -39%

250+ $1.4760 -42%

500+ $1.4242 -44% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	2.2V
Voltage - Output (Max)	14V
Voltage Dropout (Max)	2.1V @ 70mA
Current - Output	70mA

Current - Quiescent (Iq)	100 µA
Current - Supply (Max)	-
PSRR	80dB (100Hz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Short Circuit
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	8-HSOP-E
