Name: R1540N001B-TR-KE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1540N001B-TR-KE
Price: 2.18 USD
Availability: InStock

REF: R1540N001B-TR-KE Nisshinbo Micro Devices Inc.

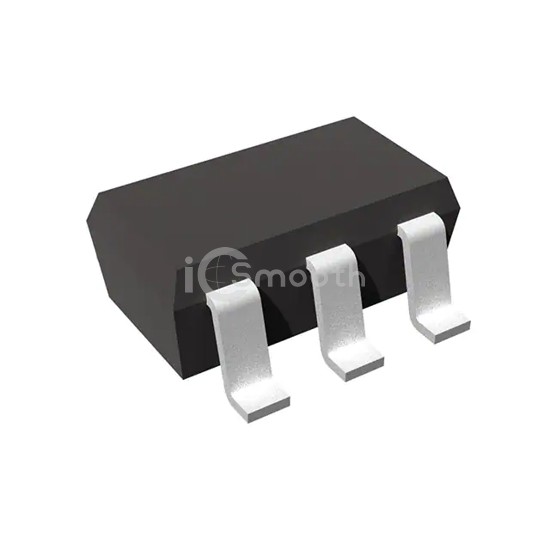

R1540N001B-TR-KE

Nisshinbo Micro Devices Inc.

IC REG LIN POS ADJ 70MA SOT23-5

R1540N001B-TR-KE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LIN POS ADJ 70MA SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SC-74A, SOT-753, current - output 70mA.

Datasheet Request a Quote

In Stock: 451

Tiered Pricing USD

1+ $2.1800 —

10+ $1.6140 -26%

25+ $1.4720 -32%

100+ $1.3160 -40%

250+ $1.2416 -43%

500+ $1.1967 -45%

1,000+ $1.1598 -47% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	2.2V
Voltage - Output (Max)	14V
Voltage Dropout (Max)	2.1V @ 70mA
Current - Output	70mA

Current - Quiescent (Iq)	100 µA
Current - Supply (Max)	-
PSRR	80dB (100Hz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Short Circuit
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
