Name: R1514S120B-E2-JE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1514S120B-E2-JE
Price: 1.12 USD
Availability: InStock

REF: R1514S120B-E2-JE Nisshinbo Micro Devices Inc.

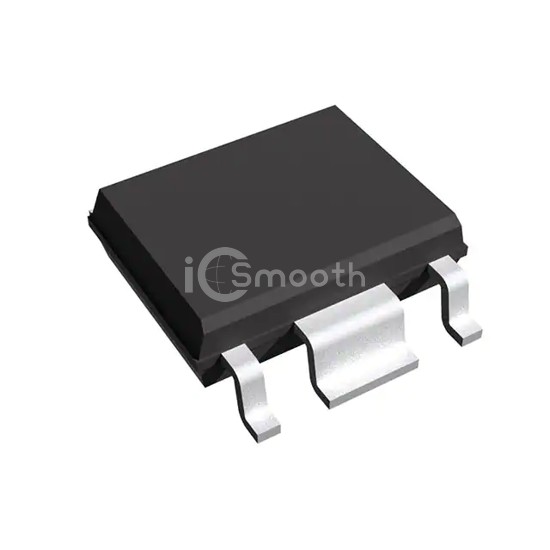

R1514S120B-E2-JE

Nisshinbo Micro Devices Inc.

IC REG LINEAR 12V 150MA 6HSOP

R1514S120B-E2-JE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 12V 150MA 6HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins, current - output 150mA.

Datasheet Request a Quote

In Stock: 5,344

Tiered Pricing USD

1,000+ $1.1181 —

2,000+ $1.0886 -3%

3,000+ $1.0738 -4%

5,000+ $1.0575 -5%

7,000+ $1.0479 -6% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.4V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	20 µA
Current - Supply (Max)	-
PSRR	-
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package	6-HSOP-J
