Name: R1514H120B-T1-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1514H120B-T1-FE
Price: 1.24 USD
Availability: InStock

REF: R1514H120B-T1-FE Nisshinbo Micro Devices Inc.

R1514H120B-T1-FE

Nisshinbo Micro Devices Inc.

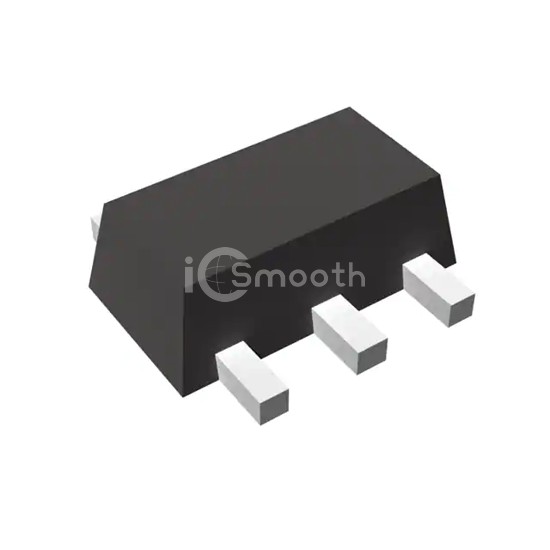

IC REG LINEAR 12V 150MA SOT89-5

R1514H120B-T1-FE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 12V 150MA SOT89-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case SOT-89-5/6, current - output 150mA.

Datasheet Request a Quote

In Stock: 122,853

Tiered Pricing USD

1+ $1.2400 —

10+ $0.9020 -27%

25+ $0.8164 -34%

100+ $0.7223 -42%

250+ $0.6774 -45%

500+ $0.6504 -48% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.35V @ 20mA
Current - Output	150mA

Current - Quiescent (Iq)	20 µA
Current - Supply (Max)	-
PSRR	-
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	SOT-89-5/6
Supplier Device Package	SOT-89-5
