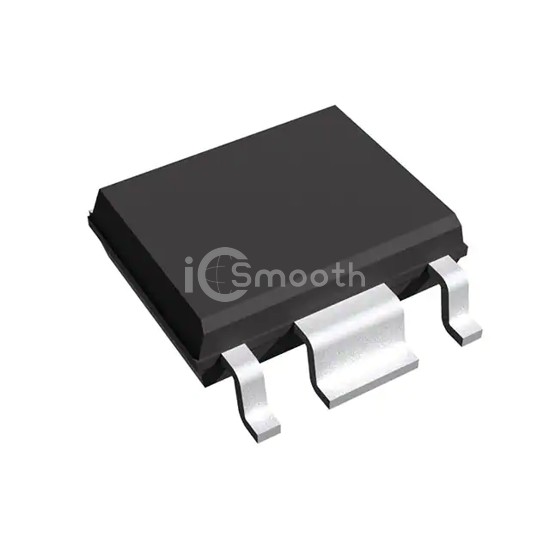

Name: R1513S501D-E2-KE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1513S501D-E2-KE
Price: 1.23 USD
Availability: InStock

REF: R1513S501D-E2-KE Nisshinbo Micro Devices Inc.

R1513S501D-E2-KE

Nisshinbo Micro Devices Inc.

IC REG LINEAR 5V 300MA 6HSOP

R1513S501D-E2-KE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 5V 300MA 6HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins, current - output 300mA.

Datasheet Request a Quote

In Stock: 2,628

Tiered Pricing USD

1,000+ $1.2292 —

2,000+ $1.1973 -3%

3,000+ $1.1814 -4%

5,000+ $1.1637 -5%

7,000+ $1.1533 -6% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	110 µA
Current - Supply (Max)	-
PSRR	70dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package	6-HSOP-J
