Name: R1501S120B-E2-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1501S120B-E2-FE
Price: 1.37 USD
Availability: InStock

REF: R1501S120B-E2-FE Nisshinbo Micro Devices Inc.

R1501S120B-E2-FE

Nisshinbo Micro Devices Inc.

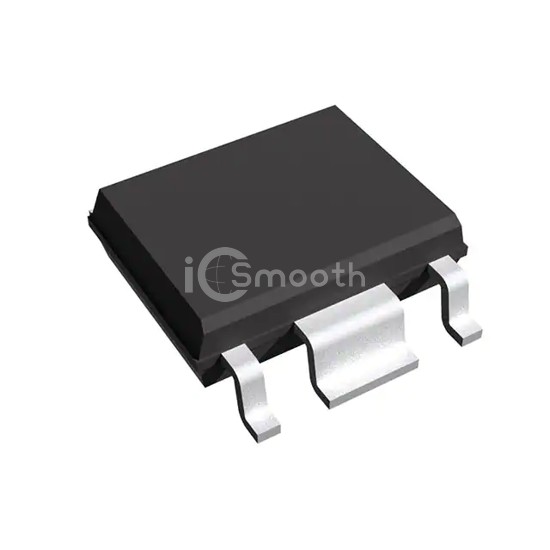

IC REG LINEAR 12V 1A 6HSOP

R1501S120B-E2-FE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 12V 1A 6HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins, current - output 1A.

Datasheet Request a Quote

In Stock: 7,593

Tiered Pricing USD

1+ $1.3700 —

10+ $0.9980 -27%

25+ $0.9040 -34%

100+ $0.8015 -41%

250+ $0.7524 -45%

500+ $0.7229 -47% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	24V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.7V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	160 µA
Current - Supply (Max)	-
PSRR	50dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package	6-HSOP-J
