Name: R1501S084B-E2-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1501S084B-E2-FE
Price: 0.70 USD
Availability: InStock

REF: R1501S084B-E2-FE Nisshinbo Micro Devices Inc.

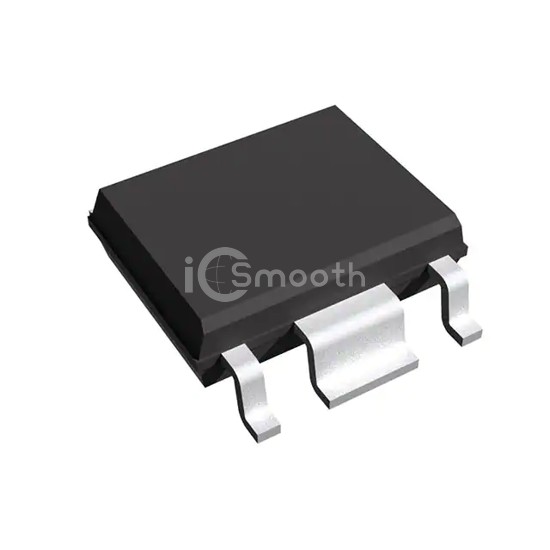

R1501S084B-E2-FE

Nisshinbo Micro Devices Inc.

IC REG LINEAR 8.4V 1A 6HSOP

R1501S084B-E2-FE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 8.4V 1A 6HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins, current - output 1A.

Datasheet Request a Quote

In Stock: 5,150

Tiered Pricing USD

1,000+ $0.6986 —

2,000+ $0.6786 -3%

3,000+ $0.6686 -4%

5,000+ $0.6575 -6%

7,000+ $0.6510 -7%

10,000+ $0.6447 -8% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	24V
Voltage - Output (Min/Fixed)	8.4V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.9V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	160 µA
Current - Supply (Max)	-
PSRR	50dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package	6-HSOP-J
