Name: R1500H120B-T1-JE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1500H120B-T1-JE
Price: 1.12 USD
Availability: InStock

REF: R1500H120B-T1-JE Nisshinbo Micro Devices Inc.

R1500H120B-T1-JE

Nisshinbo Micro Devices Inc.

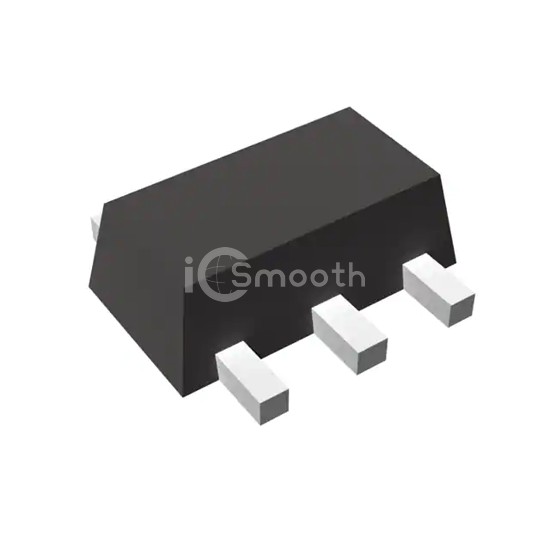

IC REG LINEAR 12V 500MA SOT89-5

R1500H120B-T1-JE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 12V 500MA SOT89-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case SOT-89-5/6, current - output 500mA.

Datasheet Request a Quote

In Stock: 2,865

Tiered Pricing USD

1,000+ $1.1181 —

2,000+ $1.0886 -3%

3,000+ $1.0738 -4%

5,000+ $1.0575 -5%

7,000+ $1.0479 -6% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	24V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.155V @ 200mA
Current - Output	500mA

Current - Quiescent (Iq)	140 µA
Current - Supply (Max)	-
PSRR	-
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-89-5/6
Supplier Device Package	SOT-89-5
