R1287L003H-TR

In Stock: 4,345

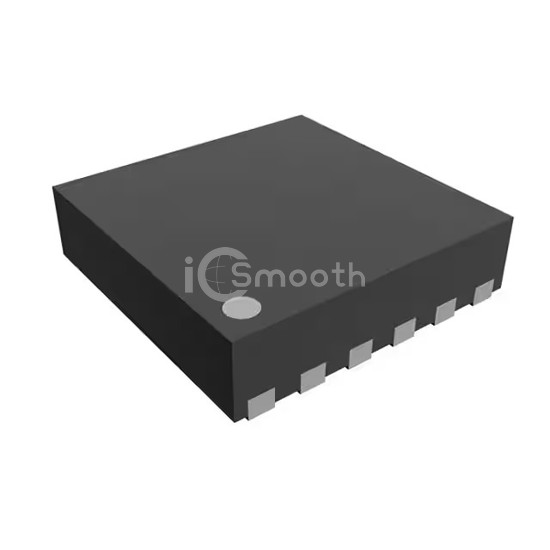

R1287L003H-TR - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: R1287L003H-TR Nisshinbo Micro Devices Inc.
R1287L003H-TR

Nisshinbo Micro Devices Inc.

PWM/VFM, DUAL-CHANNEL STEP-UP/IN

R1287L003H-TR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. PWM/VFM, DUAL-CHANNEL STEP-UP/IN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFDFN Exposed Pad, current - output 200mA.

Datasheet Request a Quote

In Stock: 4,345

Tiered Pricing USD
3,000+ $0.9257 —
6,000+ $0.9065 -2%
9,000+ $0.8969 -3% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Up/Inverted
Output ConfigurationPositive and Negative
TopologyBuck, Boost
Output TypeFixed
Number of Outputs2
Voltage - Input (Min)2.5V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)-5.4V, 5.4V
Voltage - Output (Max)-
Current - Output200mA
Frequency - Switching1MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case12-WFDFN Exposed Pad
Supplier Device PackageDFN3030-12
