R1270S001A-E2-KE

In Stock: 3,248

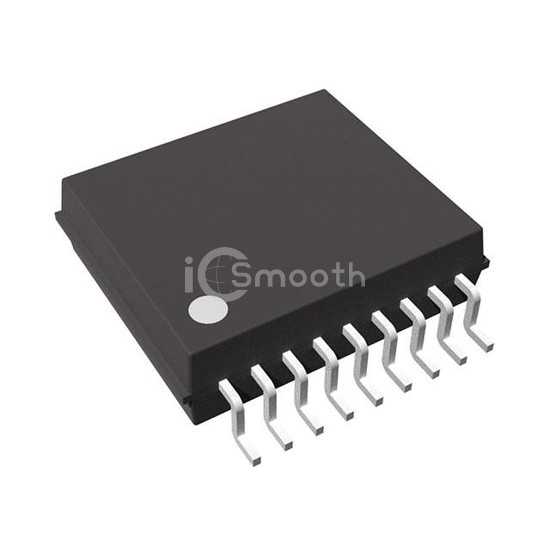

R1270S001A-E2-KE - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: R1270S001A-E2-KE Nisshinbo Micro Devices Inc.
R1270S001A-E2-KE

Nisshinbo Micro Devices Inc.

3A, 34V INPUT PWM/VFM STEP DOWN

R1270S001A-E2-KE is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. 3A, 34V INPUT PWM/VFM STEP DOWN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 18-LFSOP (0.173", 4.40mm Width) Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 3,248

Specifications

17 parameters
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)3.6V
Voltage - Input (Max)34V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)34V
Current - Output3A
Frequency - Switching300kHz ~ 2.4MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case18-LFSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package18-HSOP
