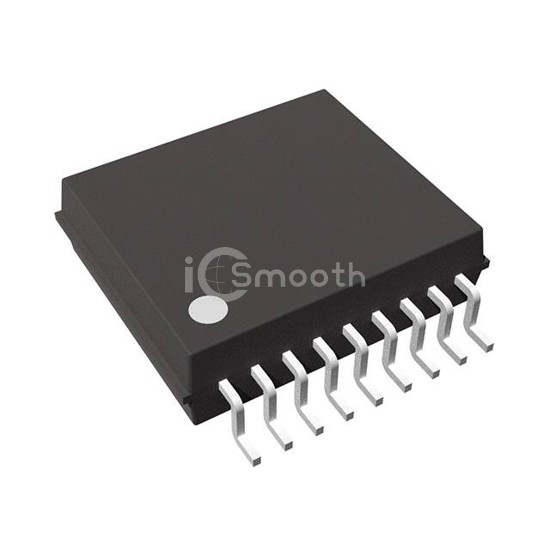

Name: R1260S023A-E2-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1260S023A-E2-FE
Price: 3.49 USD
Availability: InStock

REF: R1260S023A-E2-FE Nisshinbo Micro Devices Inc.

R1260S023A-E2-FE

Nisshinbo Micro Devices Inc.

60V INPUT / 80V ABSOLUTE MAXIMUM

R1260S023A-E2-FE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. 60V INPUT / 80V ABSOLUTE MAXIMUM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 5V ~ 60V, package / case 18-LFSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 1,040

Tiered Pricing USD

1+ $3.4900 —

10+ $2.6230 -25%

25+ $2.4072 -31%

100+ $2.1700 -38%

250+ $2.0568 -41%

500+ $1.9886 -43% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	5V ~ 60V
Frequency - Switching	150kHz ~ 600kHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	18-LFSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	18-HSOP
