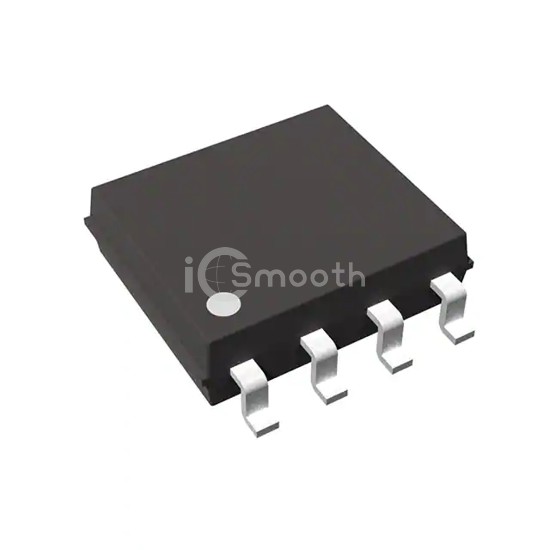

Name: R1242S001A-E2-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1242S001A-E2-FE
Price: 1.26 USD
Availability: InStock

REF: R1242S001A-E2-FE Nisshinbo Micro Devices Inc.

R1242S001A-E2-FE

Nisshinbo Micro Devices Inc.

3A 30V INPUT PWM STEP-DOWN DCDC

R1242S001A-E2-FE is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. 3A 30V INPUT PWM STEP-DOWN DCDC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-SOIC (0.173", 4.40mm Width) Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 2,849

Tiered Pricing USD

1,000+ $1.2569 —

2,000+ $1.2245 -3%

3,000+ $1.2082 -4%

5,000+ $1.1902 -5%

7,000+ $1.1797 -6% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	5V
Voltage - Input (Max)	30V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	15V
Current - Output	3A
Frequency - Switching	330kHz ~ 1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	8-HSOP-E
