Name: R1240N001B-TR-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1240N001B-TR-FE
Price: 1.72 USD
Availability: InStock

REF: R1240N001B-TR-FE Nisshinbo Micro Devices Inc.

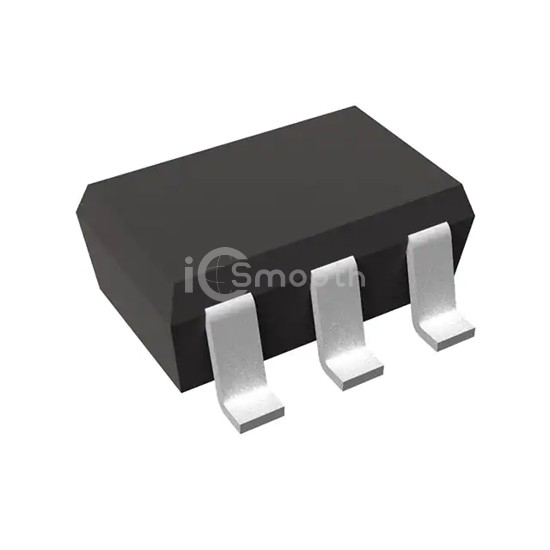

R1240N001B-TR-FE

Nisshinbo Micro Devices Inc.

PWM STEP-DOWN DCDC CONVERTER

R1240N001B-TR-FE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. PWM STEP-DOWN DCDC CONVERTER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 30V, package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 9,039

Tiered Pricing USD

1+ $1.7200 —

10+ $1.2620 -27%

25+ $1.1472 -33%

100+ $1.0212 -41%

250+ $0.9611 -44%

500+ $0.9248 -46%

1,000+ $0.8950 -48% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 30V
Frequency - Switching	1.25MHz

Duty Cycle (Max)	85%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Enable
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6W
