Name: R1225N172B-TR-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1225N172B-TR-FE
Price: 0.74 USD
Availability: InStock

REF: R1225N172B-TR-FE Nisshinbo Micro Devices Inc.

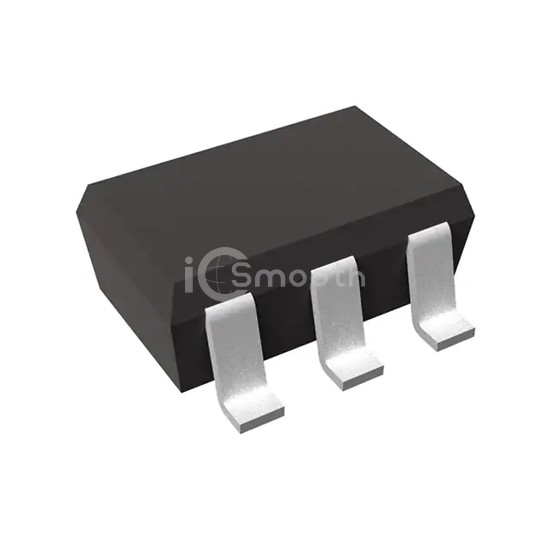

R1225N172B-TR-FE

Nisshinbo Micro Devices Inc.

18.5V INPUT PWM/VFM STEP-DOWN DC

R1225N172B-TR-FE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. 18.5V INPUT PWM/VFM STEP-DOWN DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.3V ~ 18.5V, package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 5,002

Tiered Pricing USD

3,000+ $0.7364 —

6,000+ $0.7205 -2%

9,000+ $0.7125 -3% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.3V ~ 18.5V
Frequency - Switching	500kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Enable
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6W
