Name: R1223N252A-TR-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1223N252A-TR-FE
Price: 0.72 USD
Availability: InStock

REF: R1223N252A-TR-FE Nisshinbo Micro Devices Inc.

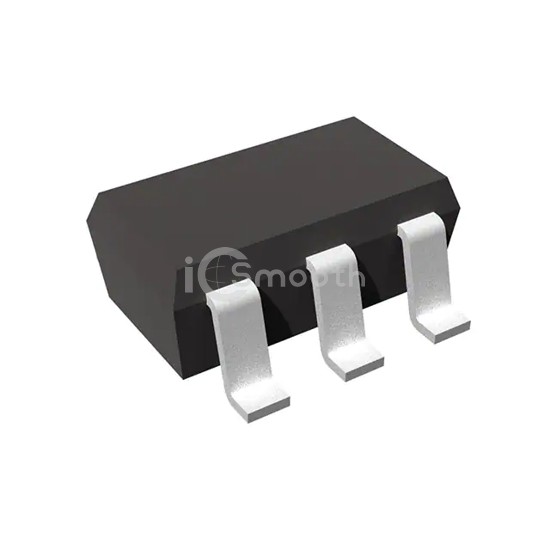

R1223N252A-TR-FE

Nisshinbo Micro Devices Inc.

13.2V INPUT PWM/VFM STEP-DOWN DC

R1223N252A-TR-FE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. 13.2V INPUT PWM/VFM STEP-DOWN DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply (vcc/vdd) 2.3V ~ 13.2V, package / case SC-74A, SOT-753.

Datasheet Request a Quote

In Stock: 3,744

Tiered Pricing USD

3,000+ $0.7229 —

6,000+ $0.7072 -2%

9,000+ $0.6993 -3% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.3V ~ 13.2V
Frequency - Switching	300kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Enable
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
