Name: R1211N002B-TR-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1211N002B-TR-FE
Price: 1.24 USD
Availability: InStock

REF: R1211N002B-TR-FE Nisshinbo Micro Devices Inc.

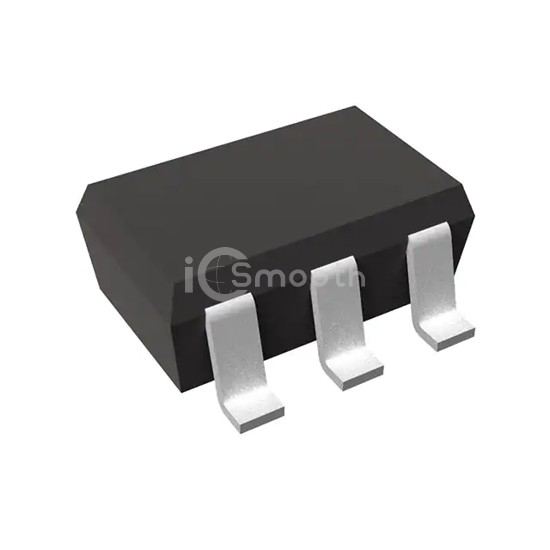

R1211N002B-TR-FE

Nisshinbo Micro Devices Inc.

PWM STEP-UP DCDC CONTROLLER

R1211N002B-TR-FE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. PWM STEP-UP DCDC CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply (vcc/vdd) 2.5V ~ 6V, package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 3,031

Tiered Pricing USD

1+ $1.2400 —

10+ $0.9020 -27%

25+ $0.8164 -34%

100+ $0.7223 -42%

250+ $0.6774 -45%

500+ $0.6504 -48%

1,000+ $0.6281 -49% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.5V ~ 6V
Frequency - Switching	700kHz

Duty Cycle (Max)	90%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Enable
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6W
