Name: R1205L821B-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: R1205L821B-TR
Price: 0.50 USD
Availability: InStock

REF: R1205L821B-TR Nisshinbo Micro Devices Inc.

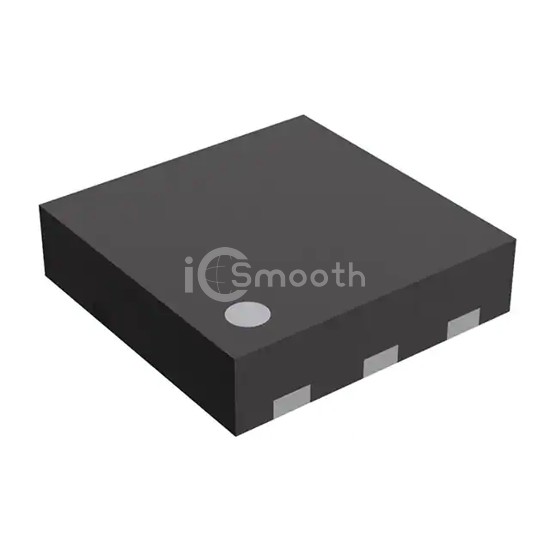

R1205L821B-TR

Nisshinbo Micro Devices Inc.

PWM STEP-UP DCDC CONVERTER FOR W

R1205L821B-TR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. PWM STEP-UP DCDC CONVERTER FOR W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-XFDFN Exposed Pad, current - output 700mA (Switch).

Datasheet Request a Quote

In Stock: 5,066

Tiered Pricing USD

5,000+ $0.4963 —

10,000+ $0.4862 -2%

15,000+ $0.4811 -3% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	1.8V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	-

Voltage - Output (Max)	24V
Current - Output	700mA (Switch)
Frequency - Switching	1.2MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	DFN1616-6B
