Name: R1202N523B-TR-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R1202N523B-TR-FE
Price: 1.04 USD
Availability: InStock

REF: R1202N523B-TR-FE Nisshinbo Micro Devices Inc.

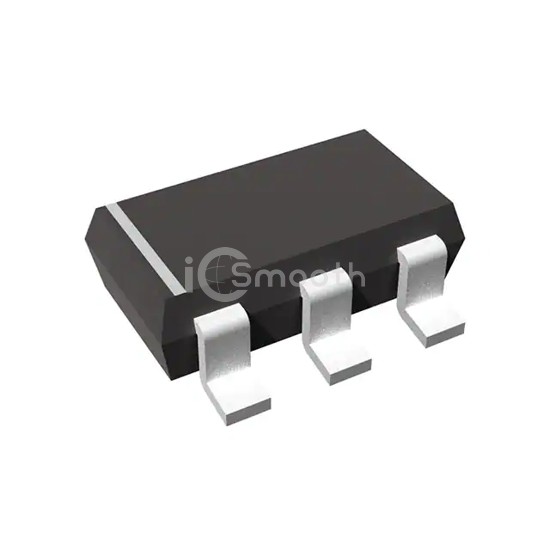

R1202N523B-TR-FE

Nisshinbo Micro Devices Inc.

PWM STEP-UP DCDC CONVERTER FOR W

R1202N523B-TR-FE is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. PWM STEP-UP DCDC CONVERTER FOR W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-6 Thin, TSOT-23-6, current - output 700mA (Switch).

Datasheet Request a Quote

In Stock: 9,755

Tiered Pricing USD

1+ $1.0400 —

10+ $0.7470 -28%

25+ $0.6744 -35%

100+ $0.5947 -43%

250+ $0.5567 -46%

500+ $0.5337 -49%

1,000+ $0.5148 -50% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1V

Voltage - Output (Max)	19V
Current - Output	700mA (Switch)
Frequency - Switching	1.2MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	TSOT-23-6
