R1114Q301B-TR-FE

In Stock: 8,705

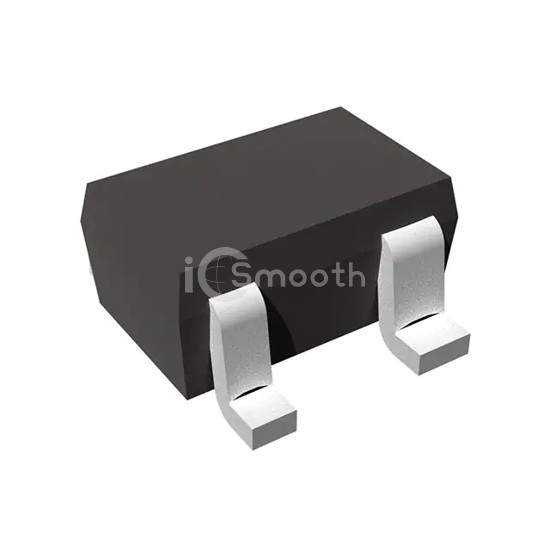

R1114Q301B-TR-FE - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: R1114Q301B-TR-FE Nisshinbo Micro Devices Inc.
R1114Q301B-TR-FE

Nisshinbo Micro Devices Inc.

IC REG LINEAR 3V 150MA SC82AB

R1114Q301B-TR-FE is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 3V 150MA SC82AB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SC-82A, SOT-343, current - output 150mA.

Datasheet Request a Quote

In Stock: 8,705

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.35V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)95 µA
Current - Supply (Max)-
PSRR70dB ~ 60dB (1kHz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseSC-82A, SOT-343
Supplier Device PackageSC-82AB
