NJW4830U2-TE2

In Stock: 7,544

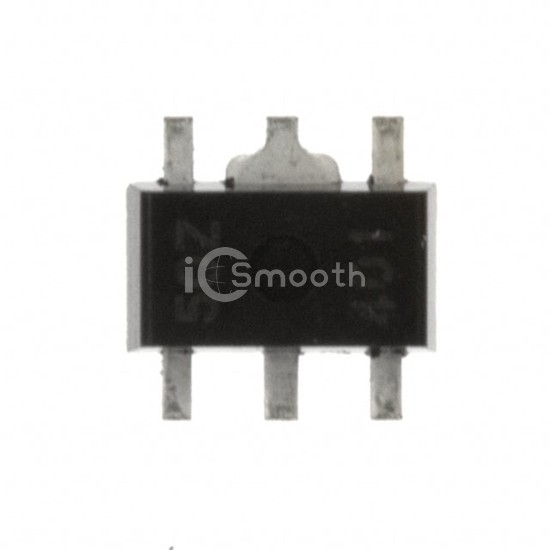

NJW4830U2-TE2 - Nisshinbo Micro Devices Inc. - PMIC - Gate Drivers
REF: NJW4830U2-TE2 Nisshinbo Micro Devices Inc.
NJW4830U2-TE2

Nisshinbo Micro Devices Inc.

SINGLE HIGH SIDE SWITCH

NJW4830U2-TE2 is a PMIC - Gate Drivers manufactured by Nisshinbo Micro Devices Inc.. SINGLE HIGH SIDE SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.6V ~ 40V, package / case SOT-89-5/6.

Datasheet Request a Quote

In Stock: 7,544

Tiered Pricing USD
1,000+ $0.6225 —
2,000+ $0.6043 -3%
3,000+ $0.5952 -4%
5,000+ $0.5851 -6%
7,000+ $0.5792 -7%
10,000+ $0.5735 -8% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side
Channel TypeSingle
Number of Drivers1
Gate TypeP-Channel MOSFET
Voltage - Supply4.6V ~ 40V
Logic Voltage - VIL, VIH0.9V, 2.64V
Current - Peak Output (Source, Sink)-
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)20µs, 20µs
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSOT-89-5/6
Supplier Device PackageSOT-89-5
