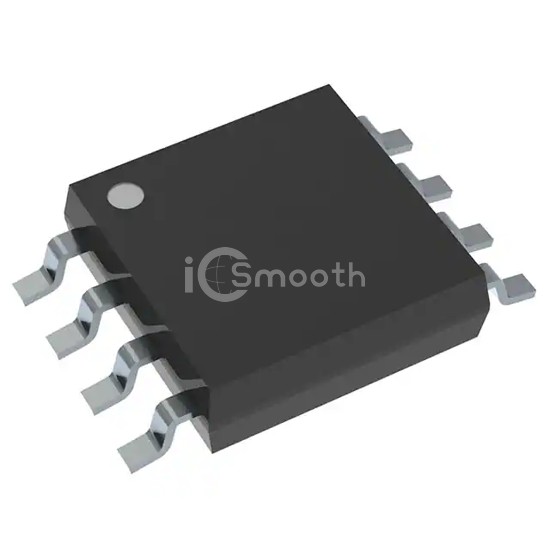

Name: NJW4140M-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: NJW4140M-TE1
Price: 0.77 USD
Availability: InStock

REF: NJW4140M-TE1 Nisshinbo Micro Devices Inc.

NJW4140M-TE1

Nisshinbo Micro Devices Inc.

MOSFET DRIVE SWITCHING REGULATOR

NJW4140M-TE1 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. MOSFET DRIVE SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.197", 5.00mm Width), current - output 700mA.

Datasheet Request a Quote

In Stock: 4,335

Tiered Pricing USD

2,000+ $0.7740 —

4,000+ $0.7556 -2%

6,000+ $0.7465 -4%

10,000+ $0.7363 -5% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	40V
Current - Output	700mA
Frequency - Switching	40kHz ~ 1MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.197", 5.00mm Width)
Supplier Device Package	8-DMP
