NJW4104U2-05A-TE1

In Stock: 6,185

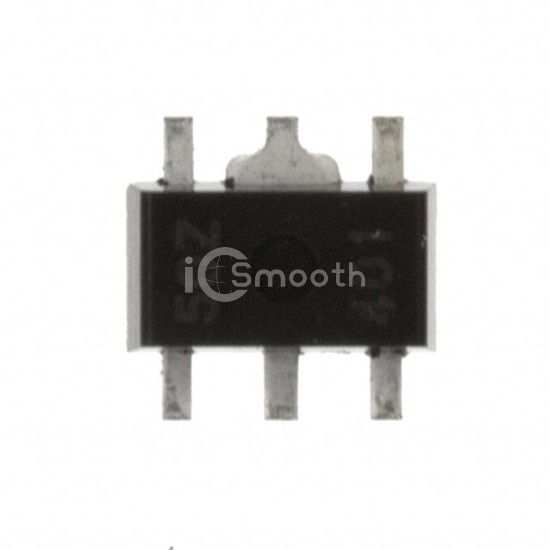

NJW4104U2-05A-TE1 - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: NJW4104U2-05A-TE1 Nisshinbo Micro Devices Inc.
NJW4104U2-05A-TE1

Nisshinbo Micro Devices Inc.

IC REG LINEAR 5V 200MA SOT89-5

NJW4104U2-05A-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 5V 200MA SOT89-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-89-5/6, current - output 200mA.

Datasheet Request a Quote

In Stock: 6,185

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.18V @ 100mA
Current - Output200mA
Current - Quiescent (Iq)13.5 µA
Current - Supply (Max)-
PSRR36dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSOT-89-5/6
Supplier Device PackageSOT-89-5
