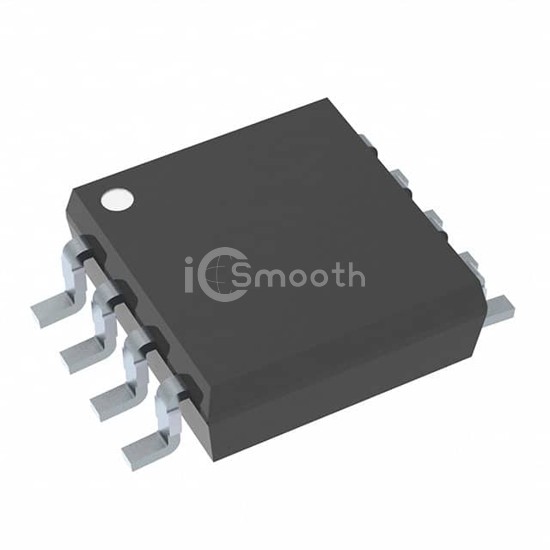

Name: NJU77242RB1-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: NJU77242RB1-TE1
Price: 0.55 USD
Availability: InStock

REF: NJU77242RB1-TE1 Nisshinbo Micro Devices Inc.

NJU77242RB1-TE1

Nisshinbo Micro Devices Inc.

RAIL-TO-RAIL INPUT OPEN-DRAIN OU

NJU77242RB1-TE1 is a Linear - Comparators manufactured by Nisshinbo Micro Devices Inc.. RAIL-TO-RAIL INPUT OPEN-DRAIN OU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VSSOP, 8-MSOP (0.110", 2.80mm Width), output type Open Drain.

Datasheet Request a Quote

In Stock: 9,907

Tiered Pricing USD

2,000+ $0.5546 —

4,000+ $0.5406 -3%

6,000+ $0.5337 -4%

10,000+ $0.5259 -5%

14,000+ $0.5214 -6% BEST

Specifications

16 parameters

Product Status	Active
Type	CMOS
Number of Elements	2
Output Type	Open Drain
Voltage - Supply, Single/Dual (±)	1.8V ~ 5.5V, ±0.9V ~ 2.75V
Voltage - Input Offset (Max)	7mV @ 3V
Current - Input Bias (Max)	1pA @ 3V
Current - Output (Typ)	-

Current - Quiescent (Max)	14µA
CMRR, PSRR (Typ)	70dB CMRR, 85dB PSRR
Propagation Delay (Max)	840ns (Typ)
Hysteresis	-
Operating Temperature	-40°C ~ 125°C
Package / Case	8-VSSOP, 8-MSOP (0.110", 2.80mm Width)
Mounting Type	Surface Mount
Supplier Device Package	8-TVSP
