NJU7670V-TE1

In Stock: 471

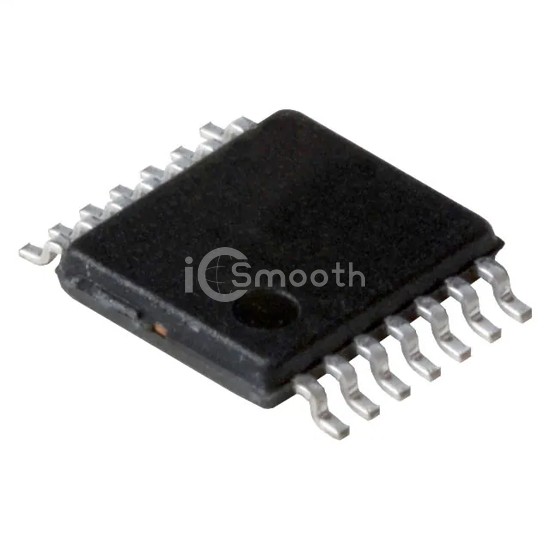

NJU7670V-TE1 - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: NJU7670V-TE1 Nisshinbo Micro Devices Inc.
NJU7670V-TE1

Nisshinbo Micro Devices Inc.

IC REG CHARG PUMP NVIN 14SSOP

NJU7670V-TE1 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. IC REG CHARG PUMP NVIN 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), package / case 14-LSSOP (0.173", 4.40mm Width), current - output 20mA.

Datasheet Request a Quote

In Stock: 471

Specifications

17 parameters
Product StatusObsolete
FunctionRatiometric
Output ConfigurationNegative
TopologyCharge Pump
Output TypeFixed
Number of Outputs1
Voltage - Input (Min)-2.6V
Voltage - Input (Max)-6V
Voltage - Output (Min/Fixed)nVin
Voltage - Output (Max)-
Current - Output20mA
Frequency - Switching2.5kHz
Synchronous RectifierNo
Operating Temperature-20°C ~ 75°C (TA)
Mounting TypeSurface Mount
Package / Case14-LSSOP (0.173", 4.40mm Width)
Supplier Device Package14-SSOP
